08-10 Ford F-250/F-350 Super Duty 6 Inch Lift Kit Diesel Without Overload Zone Offroad

08-10 Ford F-250/F-350 Super Duty 6 Inch Lift Kit Diesel Without Overload No Shocks Zone Offroad

SKU

ZONF34-FQMS

List price

$1,268.65

Price

$1,268.65

Description

When you go big you can go anywhere. This 6 Inch Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 3 Inch Inch tires. Get the look and performance you want out of your Diesel 4WD 2008 - 2010 Ford F-250 / F-3 Inch0.
Quick Specs:

Front Lift Height 6 Inch
Rear Lift Height 4 Inch
Front Lift Method Radius Arm Drop
Rear Lift Method Dual Add-A-Leafs & Block Kit
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 4.5 Inch
Max Tire Size 3 Inch x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 4.5 Inch
Max Tire Size 2 3 Inch x 12.5
Wheel Size 3 Inch20 x 9
Back Spacing 3 Inch4.5 Inch
Max Tire Size 3 Inch3 Inch x 12.5
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels See Notes
Welding Required No

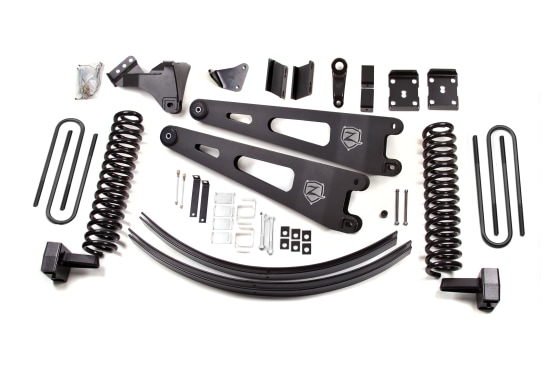

In The Box:

Add-A-Leaf's
All Necessary Mounting / Installation Hardware
Coil Springs
Dropped Pitman Arm
Rear Lift Block & U-Bolt Kit
Sway Bar Relocation Brackets
Radius Arms

Features:

Brake line relocation brackets allow re-use of factory brake lines.
Bump stop extensions properly limit up-travel, protecting your vehicle.
Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
High-strength, 1/4 Inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
Rear lift block and longer U-bolts for easy installation and level stance.
Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
Sway bar relocation brackets maintain operating angle for reduced body roll.

Kit Components

ZONF1309 08-12 Ford F250/350 4 Inch Rear 1 711745599116
ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
ZONF1603 08-10 Super Duty 6 Inch Box Kit 1 711745599314
ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369
ZONF6209 08-12 Super Duty Dual Add-a-leaf 1 711745599956

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Video

0 array:5 [
  "#type" => "html_tag"
  "#tag" => "iframe"
  "#attributes" => array:7 [
    "src" => "https://www.ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/O7W49Uf5Gsc%3Fsi%3D0B4qtKrwFynIAEwP&max_width=0&max_height=0&hash=iWkgb8ZeoMcEIBiRG2iwLQEWAsCQyCMBVC6D8zyouTA"
    "scrolling" => false
    "width" => 600
    "height" => 339
    "class" => array:1 [
      0 => "media-oembed-content"
    ]
    "loading" => "lazy"
    "title" => "Offroad Trip - Adventure Series | Michigan"
  ]
  "#attached" => array:1 [
    "library" => array:1 [
      0 => "media/oembed.formatter"
    ]
  ]
  "#cache" => array:3 [
    "contexts" => []
    "tags" => array:1 [
      0 => "config:media.settings"
    ]
    "max-age" => -1
  ]
]

Fitment

Vehicle Fitment

2008-2009 Ford F-250 Super Duty FX4

2008-2009 Ford F-350 Super Duty FX4

2008-2010 Ford F-250 Super Duty Harley-Davidson Edition

2008-2010 Ford F-350 Super Duty Harley-Davidson Edition

2008-2010 Ford F-350 Super Duty King Ranch

2008-2010 Ford F-250 Super Duty King Ranch

2008-2010 Ford F-350 Super Duty Lariat

2008-2010 Ford F-250 Super Duty Lariat

2008-2010 Ford F-250 Super Duty XL

2008-2010 Ford F-350 Super Duty XL

2008-2010 Ford F-350 Super Duty XLT

2008-2010 Ford F-250 Super Duty XLT

2009-2010 Ford F-250 Super Duty Cabela's

2009-2010 Ford F-350 Super Duty Cabela's

Installation

Installation Instructions

1d5cb0e5470e850daa0a32c8e26ac5722907042e_F1603_6.pdf (11.33 MB)

Specs

Finish

Powdercoat

Specs

Country of Origin: USA

Sold As: Kit

UPC: 810156365591

Availability: Available

Universal: No

Max Tire: 37x12.5

Shocks Included: No

Lift Height

6.0 Inch

Fuel Type

Diesel
