Description
Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle.
Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
- BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
- BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Notes
- Will not work with auto-ride equipped vehicles. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
- Minor frame bracket modification and welding are required.
- 20 inch wheels with 5 inch to 5-3/4 inch backspacing recommended to reduce trimming.
- Add BDS121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.

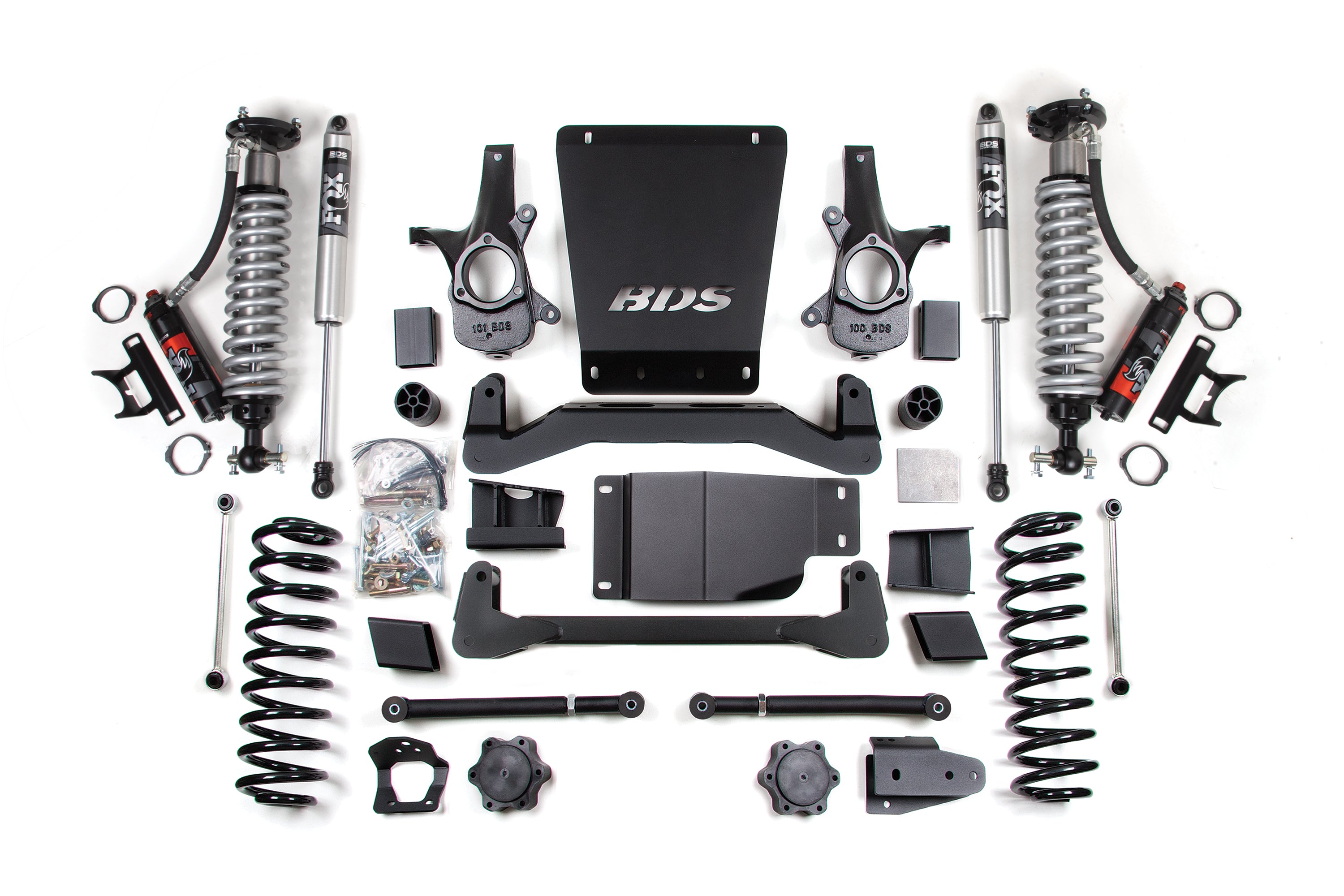

Kit components:
BDS021609 1 2007-2014 GM SUV - Rear Box Kit
BDS021640 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (1of2)
BDS021644 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (2of2)
BDS121613 1 2007-2013 GM 1500, 2007-2014 GM SUV - Front Skid Plate Box Kit
FOX88406534 1 Kit: BDS 07-18 GM 1500, Front Coil over, 2.5 Truck PES, R/R, 6 inch Lift, DSC
FOX98224759 2 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
Video
0 array:5 [ "#type" => "html_tag" "#tag" => "iframe" "#attributes" => array:7 [ "src" => "https://www.ratchetsoffroad.com/media/oembed?url=https%3A//youtu.be/PTXGGbs1gNE%3Fsi%3D1GpLcQ221NQ7pXVC&max_width=0&max_height=0&hash=0OUMKh5fomThTKApEUVaY3t-guFMuzubHo1zuW3ETz8" "scrolling" => false "width" => 600 "height" => 339 "class" => array:1 [ 0 => "media-oembed-content" ] "loading" => "lazy" "title" => "Go Explore | BDS Suspension" ] "#attached" => array:1 [ "library" => array:1 [ 0 => "media/oembed.formatter" ] ] "#cache" => array:3 [ "contexts" => [] "tags" => array:1 [ 0 => "config:media.settings" ] "max-age" => -1 ] ]
Fitment
Specs
Kit Components
BDS021609 1 2007-2014 GM SUV - Rear Box Kit
BDS021640 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (1of2)
BDS021644 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (2of2)
BDS121613 1 2007-2013 GM 1500, 2007-2014 GM SUV - Front Skid Plate Box Kit
FOX88406534 1 Kit: BDS 07-18 GM 1500, Front Coil over, 2.5 Truck PES, R/R, 6 inch Lift, DSC
FOX98224759 2 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
