RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie's proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.

Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.

All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body's 1 piece bushing will provide a slightly firmer ride.

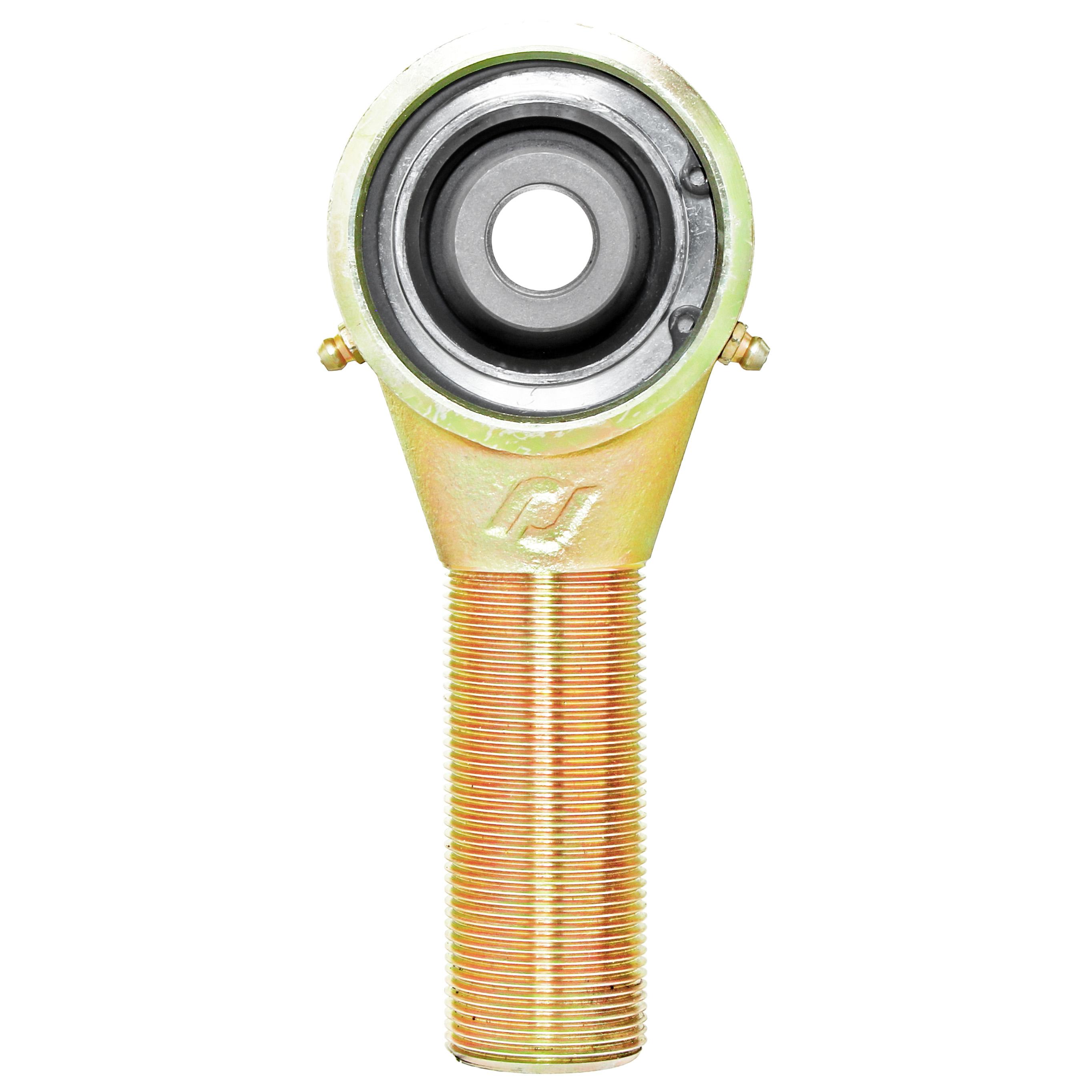

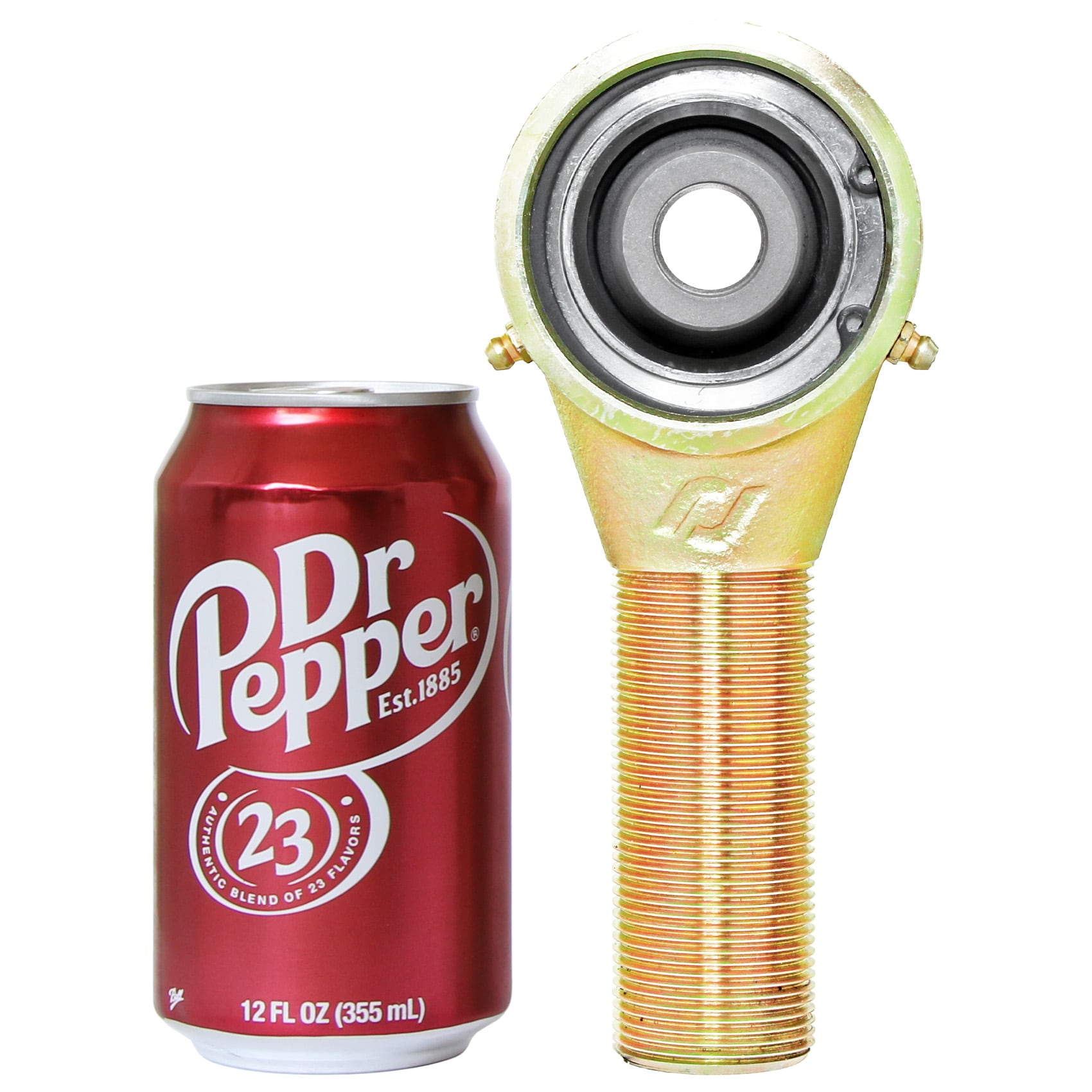

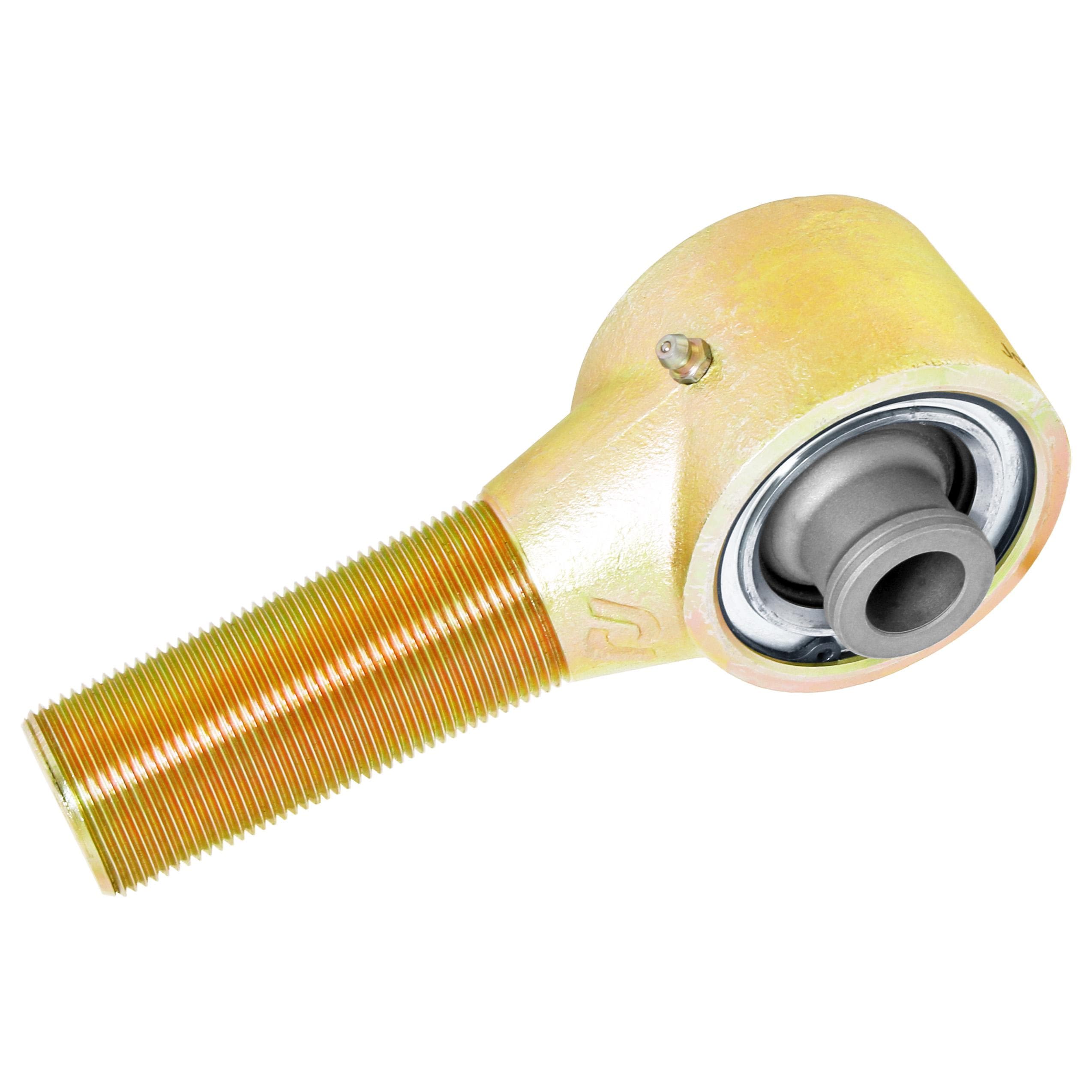

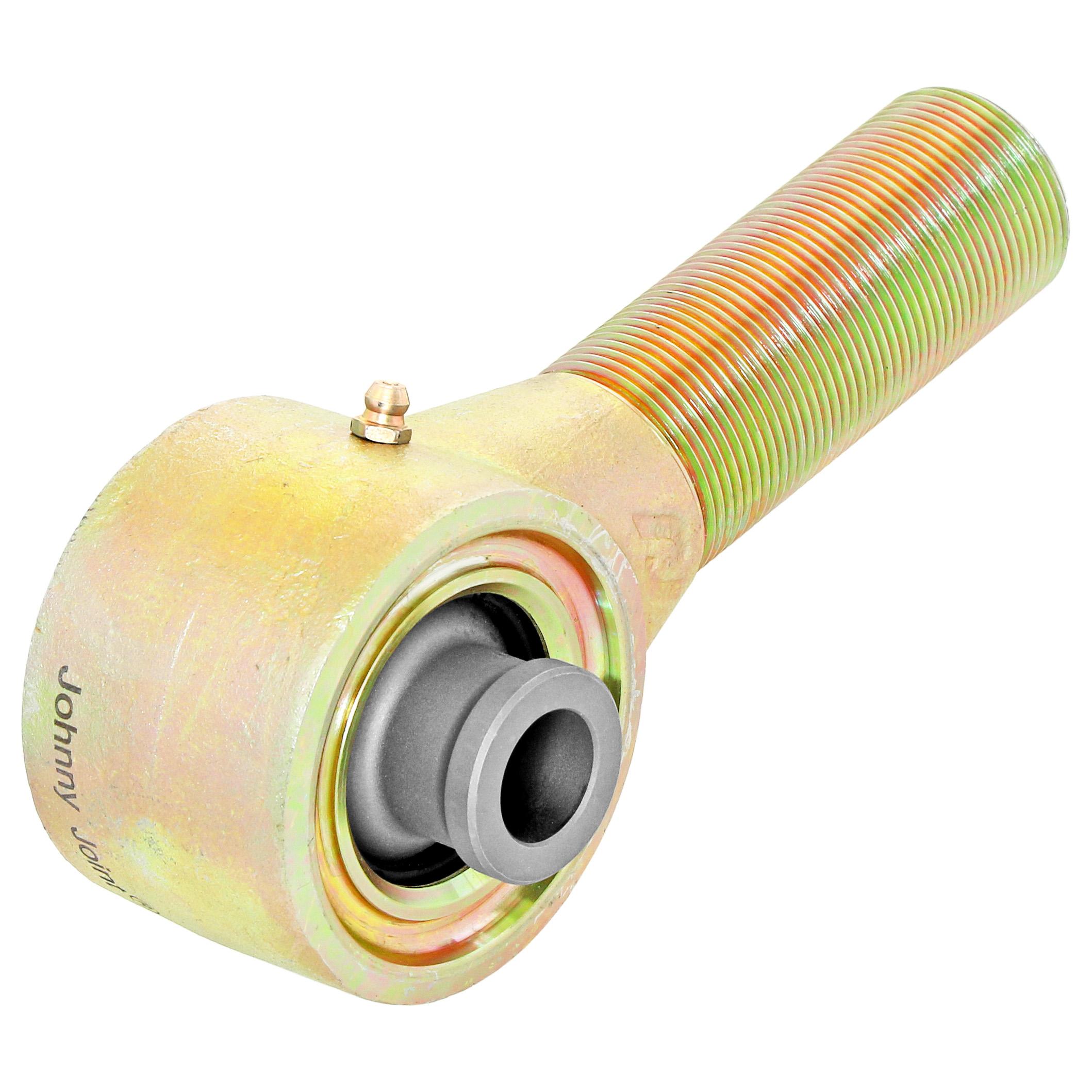

This 3 in. Johnny Joint incorporates our 1 1/2 in.-12 RH thread, narrow width, forged 4140 chromoly body and a 3.250 in. overall width x .827 in. thru-bolt hole pivot ball.

Greasing is handled externally, via a greasing hole on either side of the joint. Included is one 1/4 in.-28 zerk fitting and one 1/4 in-28 set screw. You must install one in each side as you see fit for your application.

Rod End Fits:

• Universal Application

Rod End Includes:

• (1) Forged Johnny Joint Assembly

Rod End Features:

• 29 degrees of articulation capability
• Forged 4140 chromoly construction
• 3 in. O.D. x 2 in. wide joint outer barrel
• 3.67 in. of 1 1/2 in.-12 RH threads
• 6 inches from CL of joint to end of threads
• 1-piece bushing internals
• 3.250 in. wide x .827 in. thru-hole pivot ball
• Accepts a 20mm bolt
• Zerk fitting for greasing
• Fully assembled, ready for use right out of the box

Notes:

• Threaded grease zerk holes are supplied both sides of the joint allowing you to install the supplied zerk fitting on one side and the supplied set screw on the opposite side, as you see fit for your application.
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• Applicable Johnny Joint Tool for this Rod End: CE-9111T
• Important- joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
